Fume Hoods & Chemical Storage

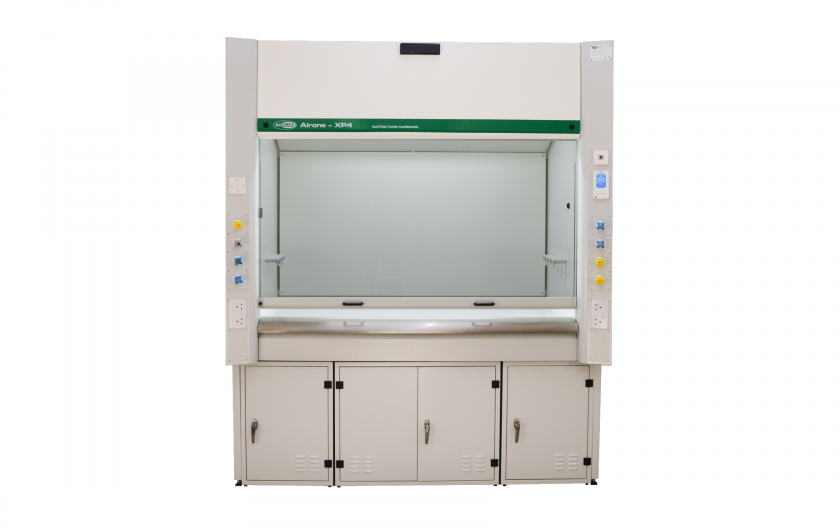

Double Wall Ducted Fume Cupboard

The Airone XP4 is a high specification double walled fume cupboard; services are located on the internal walls, leaving the entire working area available for use. Build quality is of the highest standard, with extruded aluminium aerofoils, a stainless steel sill and a counter-weighted smooth action laminated glass sash. It is available with either a VAV (Variable Air Volume) or air bypass system The VAV model automatically minimises the amount of indoor (conditioned) air being pulled through the fume cupboard and expelled outside as the sash is raised and lowered, whilst maintaining full operator protection. The reduction in heating or air conditioning required by the building yields substantial energy savings. In the air bypass model a constant volume of air is pulled through the Airone XP4 under all operating conditions. A special low flow configuration of the Airone XP4 maintains operator protection at reduced face velocities down to 0.3m/s, helping to fulfil the low energy requirements of BREEAM accredited new buildings. The Airone XP4 fume cupboard is available in a choice of sizes and can be bench mounted, free standing or supplied as a walk-in unit. An extensive list of options allows services and materials to be tailored to each customer’s individual needs.

Fume Cupboards for Industry and Higher Education

Key Points

  • Designed to comply with BS:EN 14175
  • Double walled construction
  • Air bypass system or Variable Air Volume (VAV) system
  • Easily tailored to meet your requirements
  • BREEAM compliant

General Product Information

  • Epoxy coated mild steel construction (RAL7035)
  • Aluminium extrusions
  • Digital control system
  • Counterweighted front sliding glass sash
  • Available in various widths and walk-in option

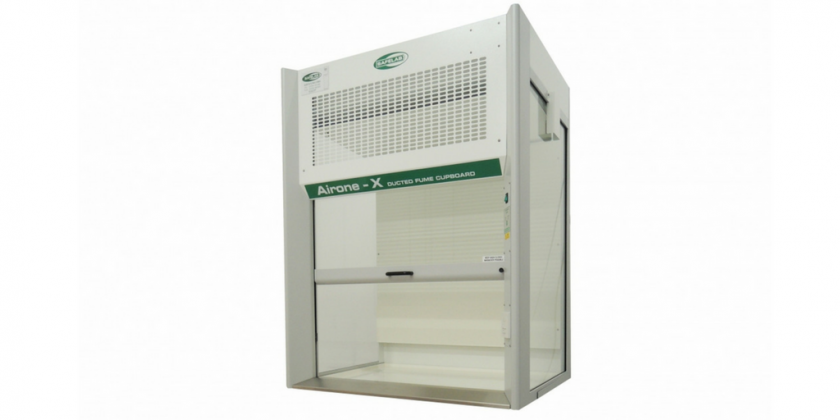

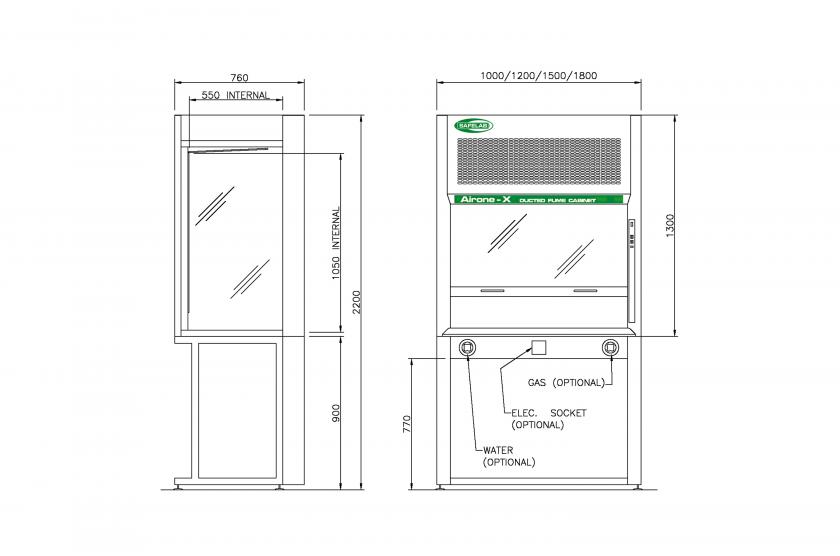

Single Wall Ducted Fume Cupboard

Airone X is a high specification single walled ducted fume cupboard with laminated glass sides providing a clear view of the workspace. Build quality is of the highest standard, with extruded aluminium aerofoils, a stainless steel sill and a counter-weighted smooth action laminated glass sash. The fume cupboard incorporates an air bypass system, which ensures full operator protection by maintaining a constant, safe inflow of air at all working sash heights. The Airone X fume cupboard is available in a choice of sizes and can be bench mounted, free standing or supplied as a walk-in unit. An extensive list of options allows services and materials to be tailored to each customer’s individual needs.

Fume Cupboards for Industry and Higher Education

Key Points

  • Designed to comply with BS:EN 14175 and BB88
  • Bypass system to ensure constant airflow
  • Low airflow alarm
  • No replacement filter costs

General Product Information

  • Epoxy coated mild steel construction (RAL7035)
  • Counterweighted front sliding glass sash
  • Laminated glass side windows
  • Built in fluorescent lights
  • Polypropylene and Walk-In options available

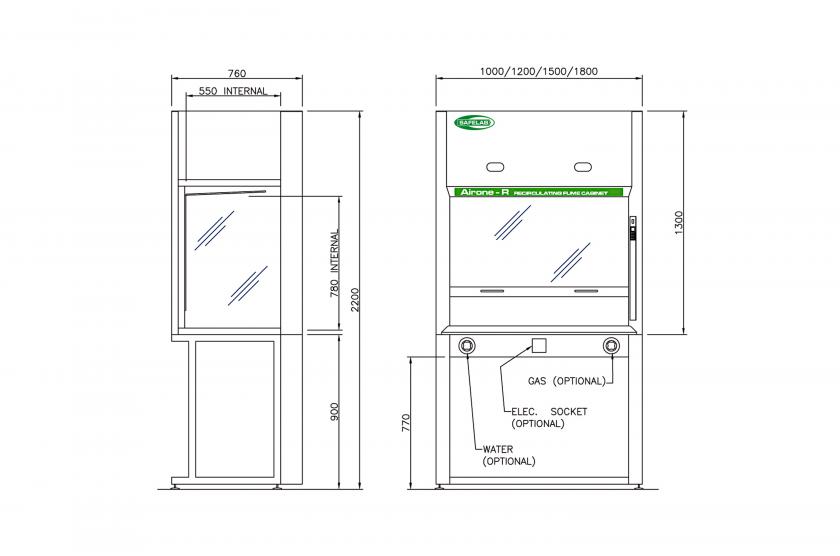

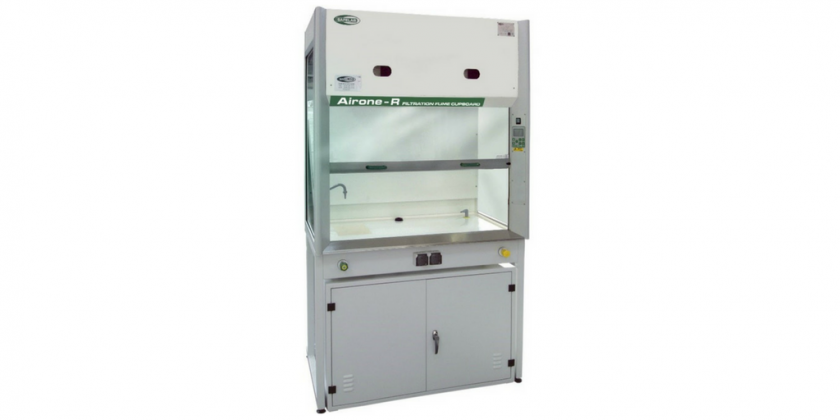

Ductless (Recirculating) Fume Cupboard

The Airone R is a high specification ductless (recirculating) fume cupboard with laminated glass sides, incorporating replaceable activated carbon and/or HEPA filters to suit your application. Build quality is of the highest standard, with extruded aluminium aerofoils, a stainless steel sill and a counter-weighted smooth action laminated glass sash. An integrated variable air volume (VAV) system ensures the required inward air flow for operator protection remains constant at all working sash heights. The fume cupboard incorporates a low air flow alarm for complete safety. Since there is no requirement for ducting or make up air systems, installation of the Airone R fume cupboard is more straightforward and less costly than a ducted unit. The Airone R is also exceptionally energy efficient, since it does not expel heated indoor air to the outside. The Airone R fume cupboard is available in a choice of sizes and can be bench mounted, free standing or supplied as a walk-in unit. An extensive list of options allows services and materials to be tailored to each customer’s individual needs.

Fume Cupboards for Industry and Higher Education

Key Points

  • Variable Air Volume (VAV) system
  • Energy efficient and environmentally friendly
  • No ducting required
  • Low airflow alarm
  • Carbon / HEPA filter technology

General Product Information

  • Epoxy coated mild steel construction (RAL7035)
  • Safety glass side panels
  • Counterweighted front sliding glass sash
  • Polypropylene and walk-in options available

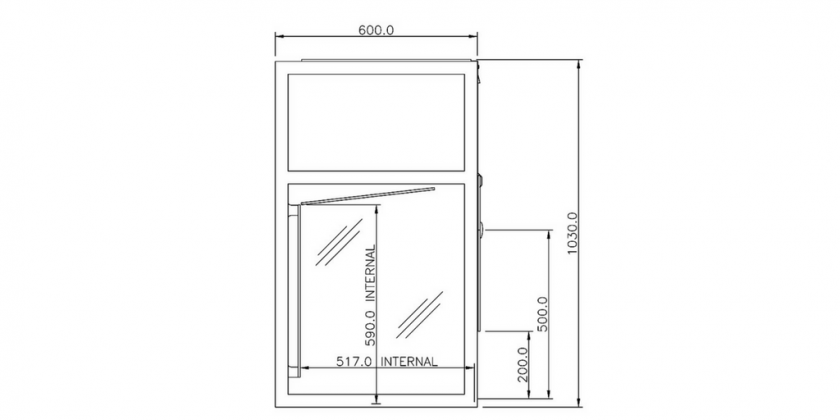

Ductless Fume Cupboard

The FC750 is a compact ductless (recirculating) fume cupboard with laminated glass sides and a hinged clear acrylic front, incorporating a replaceable activated carbon filter and/or HEPA filter to suit your application. It can be used on the bench top, supplied with legs, or trolley mounted for portability. The FC750 ductless (recirculating) fume cabinet incorporates a simple to use control system, including a fan failure alarm. The hinged acrylic front panel is lowered when the FC750 fume cupboard is in use, and can be raised to allow full access for setting up your work.

Ductless (recirculating) Fume cupboards for Industry and Higher Education

Key Points

  • No ductwork - easy to install
  • Fan failure alarm
  • Folding front sash
  • Lightweight and moveable
  • Designed to comply with BS7989:2001

General Product Information

  • Epoxy coated rolled steel construction
  • Aluminium extrusions
  • Bench mounted or on a stand
  • Side panels in laminated glass
  • Carbon / HEPA filter technology
